2″ DJT8 Metallic Pump
Air Operated Double Diaphragm Pump; Pneumatic Aluminum, Stainless, Cast Iron Diaphragm Pump
2″ DJT8 metallic Pump performance
| Max Flow (lpm/gpm) | Porting | Max Pressure (psi/bar) |
| 617/163 | NPT/BSP | 125/8.6 |
| Max Solids (mm) | Wetted End | Suction Lift (m) |
| 6.4 | Aluminum | 6.40(Dry)/ 9.5(Wet) |

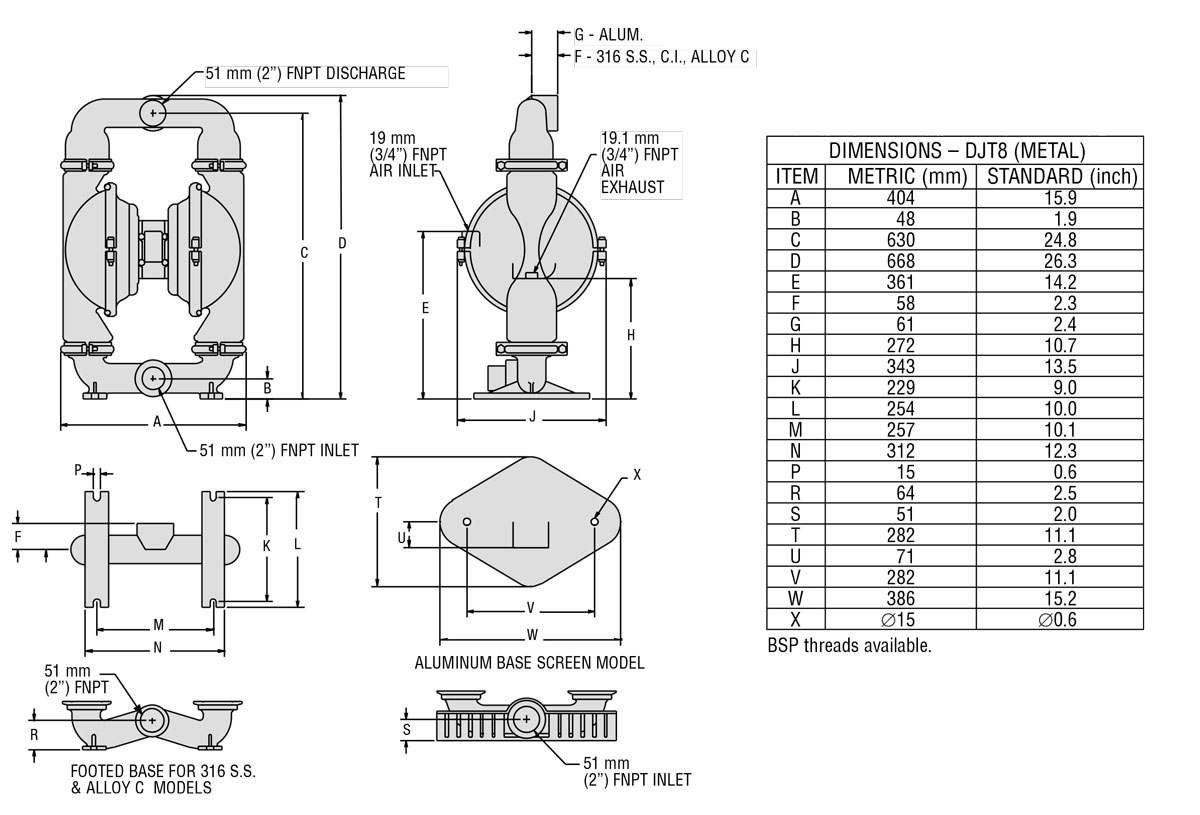

DJT8 Metallic Pump Dimension Drawing
Chemical Chart of Materials |
| Material Name | Working Temperature Limited F(℃) | Level 1 ~ 5 (Level 5 is the best) |
| Chemical Resistance | Wear Resistance | Flexibility |
| Buna-N | -10(-23) ~ 190(88) | 1 | 2 | 3 |
| PTFE-Diaphragm | -35(-37) ~ 220(104) | 5 | 2 | – |
| EPDM | -40(-40) ~ 280(138) | 4 | 4 | 4 |
| Viton | -40(-40) ~ 350(177) | 4 | 2 | 1 |
| Neoprene | -10(-23) ~ 200(93) | 1 | 3 | 3 |
| PP | +35(2) ~ 175(79) | 4 | 2 | – |
| Santoprene | -40(-40) ~ 275(135) | 4 | 5 | 5 |
| PVDF | +10(-12) ~ 200(93) | 5 | 2 | – |
| TPO | -40(-40) ~ 239(115) | 4 | 5 | 3 |
